Galvanized Gabion Box
About Galvanized gabion box
Glavanized gabion box is also well know as gabion cage, stone cage.
Glavanized gabion box is made of hot dipped galvanized wire, with heavy galvanized, the gabion box is woven with double twist and hexagonal mesh.
Reuirements of the wire diameter
The gabion box is woven by machine, the diameter of wire is 2.2mm, 2.7mm, 3.4mm ect, but the edges of cage will be selvedged with a wire having a greater diameter, It's depended on the customer's requirements, such as following requirements:
- Mesh Wire: The nominal diameter of the steel wire mesh shall be 3 mm (U.S. Gauge No. 11) after zinc coating
- Selvedge Wire: The nominal diameter of the selvedge wire, running through all the edges (perimeter wire), shall be 4 mm (U.S. Gauge No. 9) after coating.
- Lacing Wire: The nominal diameter of the wire, necessary for assembling and lacing the gabion
- units, shall be 2.2 mm (U.S. Gauge No. 13) after coating
Specification of the gabion
Customized is acceptable in our factory, we can make the gabion box as your rquirements. Normal size as following table
| Aperture | 8x10 cm | 9x11 cm |
| Mesh Wire diameter | 2.7mm | 2.7mm |
| Selvedge wire | 3.4mm | 3.4mm |
| Tie wire | 2.2mm | 2.2mm |
| Material | Hot Galvanized wire | Hot Galvanized wire |
| Common size | 2m x 1m x 1m | 2m x 1m x 1m |
| Weight | 16.7kg/set | 16.0kg/set |
| Packing & loading | 100sets/bundle ,1200sets/20ft container ,1500sets/40HC |
| Feature | Strong structure and corrosion-resistance to protect the dam and riverbank |

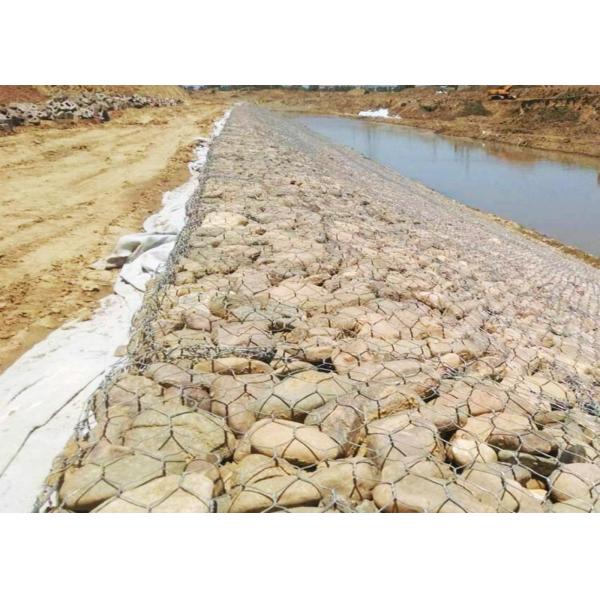

Application of the Galvanized gabion box
- Control and guide of water;
- preventing of rock breaking;
- water and soil, roadway and bridge protection;
- strengthening structure of soil;
- protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts;
- coastal embankment works; a
- rchitectural feature retaining walls.
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
