2.7mm 3.2mm Gabion Box / Hexagonal Gabion Cage For Protecting Riverbank

Gabion Box For Protecting Riverbank With Hot Dipped Galvanized Wire Galfan PVC Coated Wire

Gabion Box

Introduction of gabion box

Gabion box is made of low-carbon steel wire, the steel wire is woven by hexagonal machine,

The wire are hot dipped galvanized wire or galvanized wire with PVC Coated with high corrosion resistance, high strength and ductility.

According to ASTM A 975 and en10223 standards, the diameter of galvanized low-carbon steel wire used varies according to the engineering design requirements.

Generally, it is between 1.5-4.0mm, the tensile strength of the steel wire is not less than 38kg/ ㎡, the weight of the metal coating is generally higher than 245g/ ㎡, and the edge line diameter of the gabion mesh is generally larger than the wire diameter

Material of Gabion box

(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot-dip galvanizing. The thickness of the galvanized protective layer is made according to customer requirements, and the maximum amount of galvanizing can reach 300g / m2.

(2) Galfan steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanized steel wire. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.

(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire, wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and through the selection of different colors, it can integrate with the surrounding environment.

Specification of Gabion cage of popular in our factory

The Advantages of the gabion

1. Using gabion to build dams is fast and highly mechanized,

2. Convenient transportation: the gabion can be folded and packed with pallets, it will be save the freight..

3. The gabion is easy to install, it can be assembled on the construction site, which is convenient and fast.

4. Strong corrosion resistance: Wire surface of the gabion is adopted hot galvanizing technology to increase its corrosion resistance.

5. Environmental protection: the earth between the filling materials of the embankment built with gabion net is conducive to the growth of plants.

XINGEBIN brand woven gabion basket is widely used for the following application: control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.

Company information:

Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.

Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.

Our Certification
ISO 9001 and ISO 14001-certification.

5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.

Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.

2.7mm Gabion Box

3.2mm Gabion Box

Hexagonal Gabion Cage

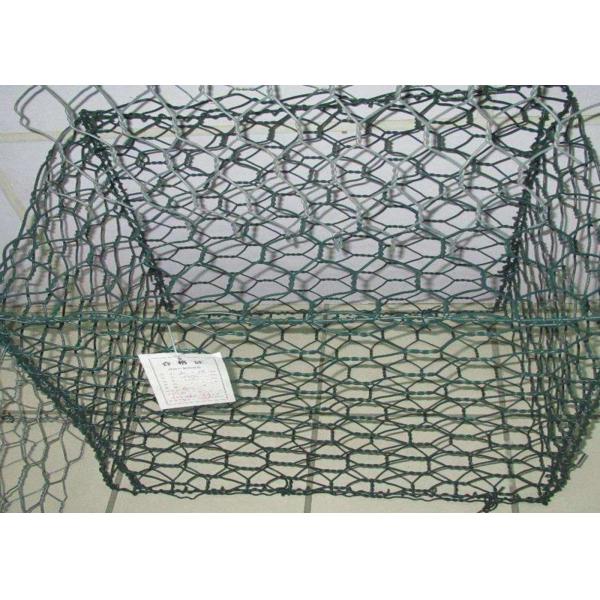

2.7mm 3.2mm Gabion Box / Hexagonal Gabion Cage For Protecting Riverbank Images
