Gabion es Hot Dipped Galvanized Wire Mesh PVC Coated As Construction Material
Gabion es
About Gabion es

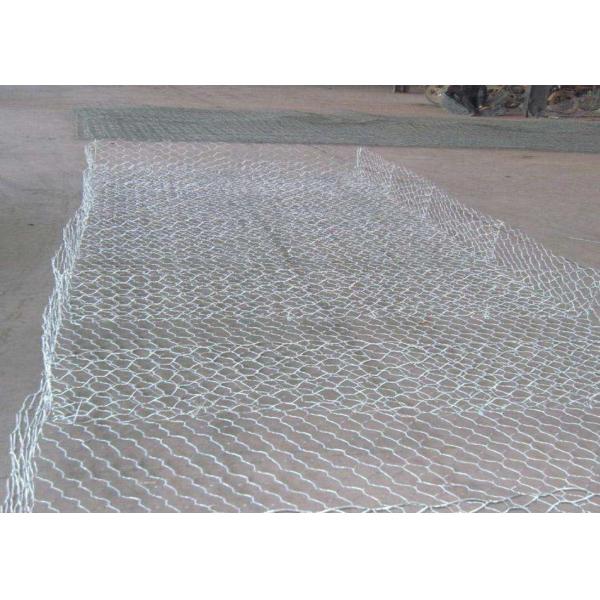

Gabion es refers to a steel wire mesh cage woven by machine, which is made of low-carbon steel wire, the surface of the steel wire is hot-dip galvanized or PVC treated.
Gabion es is filled with stones at the construction site, forming a flat box structure with flexible, permeable and integral characteristics, and is used for erosion prevention works such as bank slope protection.
Specification of the gabion es
The height of the Gabion es is much smaller than its width and width, there will be a diaphragm at every 1 meter, the size of gabion es is designed as cutomer's requirements, such as following.
- Gabion es shall be 300mm deep or to the dimension
- Gabion es shall be 2m wide and 3m or 6m long as required.
- Each shall be divided into cells by diaphragms at 1m maximum centres of the same mesh and gauge as the body.
| Aperture | 8x10 cm | 9x11 cm |
| Mesh Wire diameter | 2.7mm | 2.7mm |
| Selvedge wire | 3.4mm | 3.4mm |
| Tie wire | 2.2mm | 2.2mm |
| Material | Hot Galvanized wire | Hot Galvanized wire |
| Common size | 2m x 1m x 0.3m | 2m x 1m x 0.3m |
| | | |
Geotextile
A layer of geotextile is added between the top surface of the river embankment and the bottom layer of the gabion es, in order to stabilize and constrain the displacement of the gabion mesh, and transfer or disperse the local stress of the soil in a large area, so as to enhance the friction resistance between the soil and the geotextile.
At the same time, geotextile can protect and prevent erosion of soil or water surface, prevent soil particles from passing through, and reduce soil structure damage caused by soil particle loss.
The Application of the gabion es
- The gabion es can be used to reinforce river banks. The gabion used to reinforce the river embankment is usually on the inner side of the embankment
- Gabion es can also be used to guide river water
- The gabion es is also applied to flood discharge dams and diversion dams, the gabion wall is guided or restricted floods
- Gaion es is also widely used in highway, railway, construction and other fields
