Brand Name : XINGEBIN
Model Number : R-SLW
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1000 square meter
Price : USD1.0-2.5/SQUARE METER
Payment Terms : T/T, L/C
Supply Ability : 20000 SQUARE METERS/DAY
Delivery Time : 10-15DAYS
Packaging Details : BUNDLE+PALLET
materil : 5% galfan wire
hole size : 120mmx150mm
width : 1m
length : 2m
hight : 1.5
Hole shape : Hexagonal
Wire gauge : 2.0-4.0mm
5% hot dipped galfan wire gabion basket use for reclamation works application
* Soil erosion is an ever present problem and gabions have proved to be a lasting solution around the world. The lasting appeal of gabions cage lies in their inherent flexibility.
* The most common civil engineering use of gabions cage is to stabilize shorelines or slopes against erosion. Other uses include temporary floodwalls, to filter silt from runoff, for small or temporary/permanent dams.
* In civil engineering a gabion wall is a retaining wall made of rectangular containers basketsfabricated of heavily galvanized wire, which are filled with stone and stacked on one another, usually in tiers that step back with the slope rather than vertically.

5% hot dipped galfan wire gabion basket use for reclamation works detail:
| Length(m) | Width(m) | Height(m) | Diaphragm | Volume(m3) | Tolerance |
| 2.0 | 1.0 | 0.3 | 1 | 0.6 | L:+/-3% W:+/-5% |
| 3.0 | 1.0 | 0.3 | 2 | 0.9 | |
| 4.0 | 1.0 | 0.3 | 3 | 1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 0.5 | 0 | 0.5 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |

5% hot dipped galfan wire gabion basket use for reclamation machine:

|
|

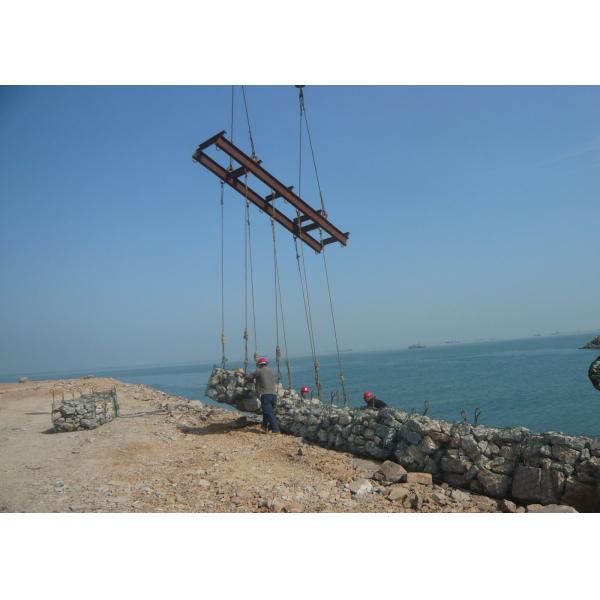

5% Hot Dipped Galfan Wire Gabion Baskets For Reclamation Works Images |
